WEICHAI

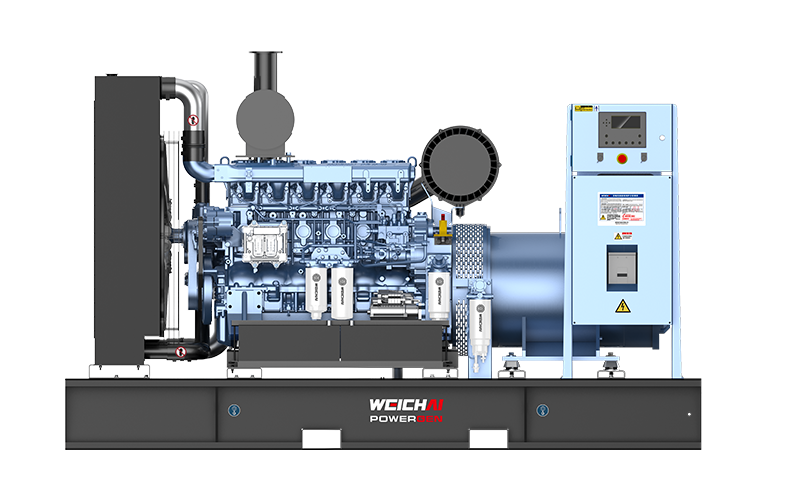

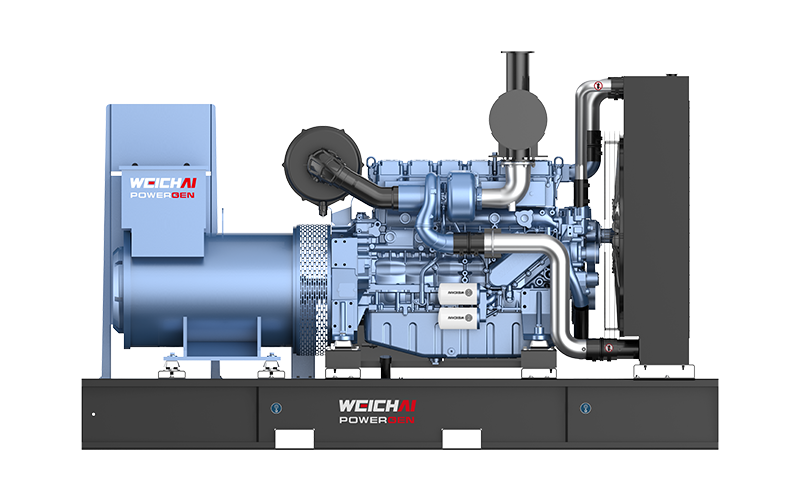

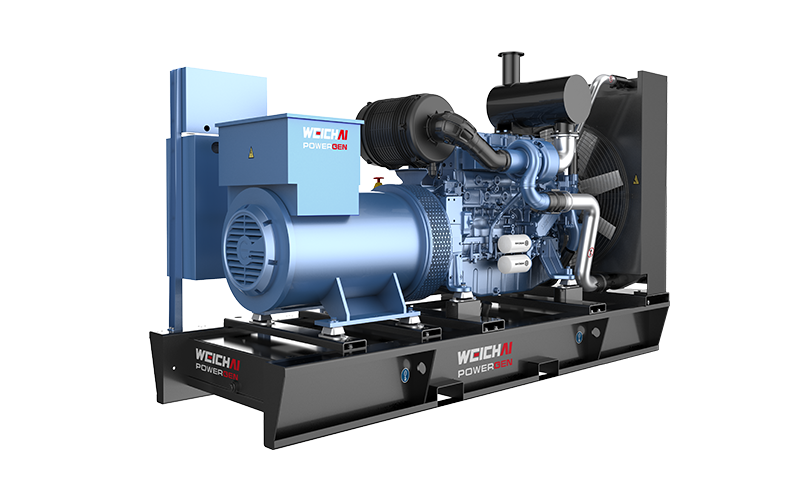

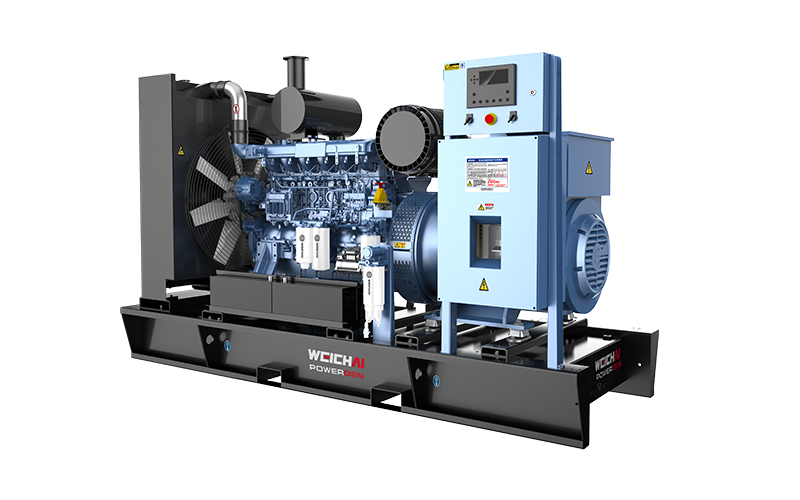

400 kVA – 550 kVA Standard Land-based Generator Set Series

Suitable for general market, telecommunications, industrial warehousing, livestock farming, oil fields, mining, and equipment rental applications

320-440

功率范围/持续功率

Soundproofed

结构形式

产品概述

The WP13 series generator set utilizes Weichai’s new generation of independently developed, high-end engines, featuring a compact structure, high reliability, and excellent load response; The WP13 diesel generator set offers a power range of 400 kVA-550 kVA, meeting the requirements of various applications.

产品优势

High Reliability: The products have undergone over thirty durability and performance tests, ensuring long-lasting durability and superior reliability of the generator sets

Intelligent Control: Equipped with a microcomputer-based intelligent controller and international brand circuit breakers to achieve automated genset control

High Adaptability: Capable of operating in complex environments including high temperatures, extreme cold, high altitudes, high humidity, and dusty conditions, while maintaining performance with varying fuel qualities.

High Economy: Matched with high-pressure ratio turbochargers to increase air intake and optimize combustion for significant fuel savings

产品规格

功率范围kWe
320-440
产品系列
燃料
Diesel
发动机型式
Inline
气缸数
6
缸径 × 行程mm
排量 L
12.54
机组尺寸(敞开式)mm
3400×1345×2350
重量(开式)kg
3420 (Soundproofed)
结构形式
Soundproofed

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Genset Model

Rated speed (rpm)

Standby Power (kVA/kW)

Prime Power (kVA/kW)

Baudouin Engine Model

Cylinders

Bore × Stroke (mm)

Governing System

Emission standard

WPG440L8

1500

440/350

400/320

6M21G4D3/5

6

127×165

Electronic control

Stage IIIA

WPG550L8

1500

550/440

500/400

6M21G8D3/5

6

127×165

Electronic control

Stage IIIA
