产品概述

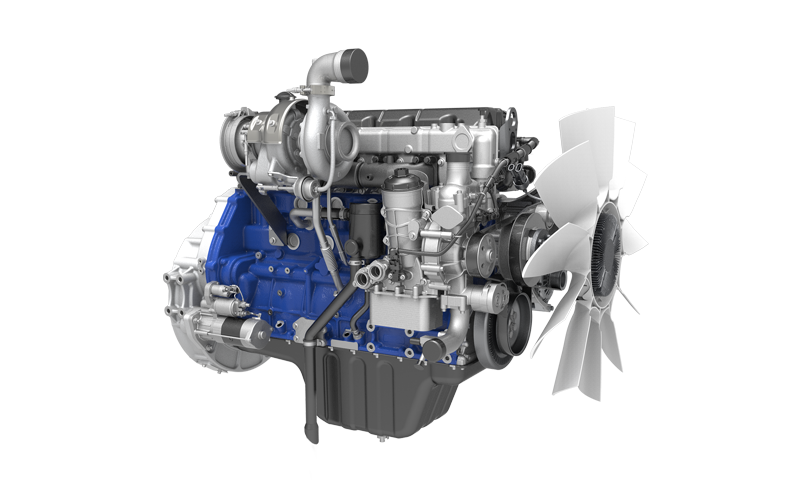

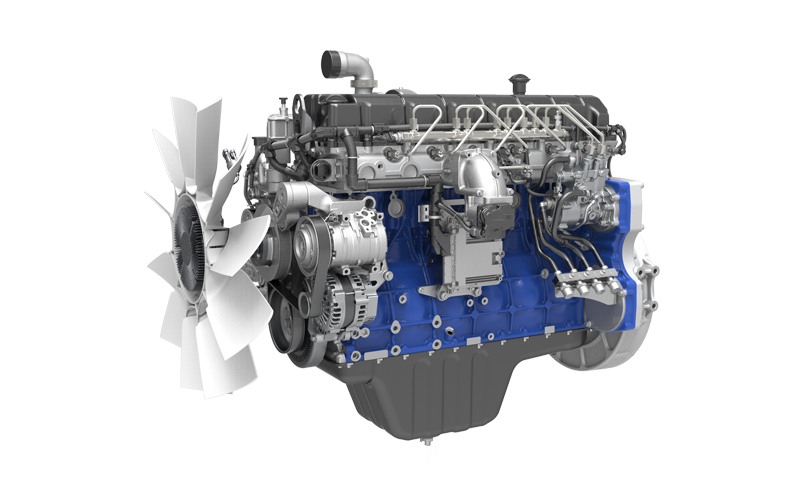

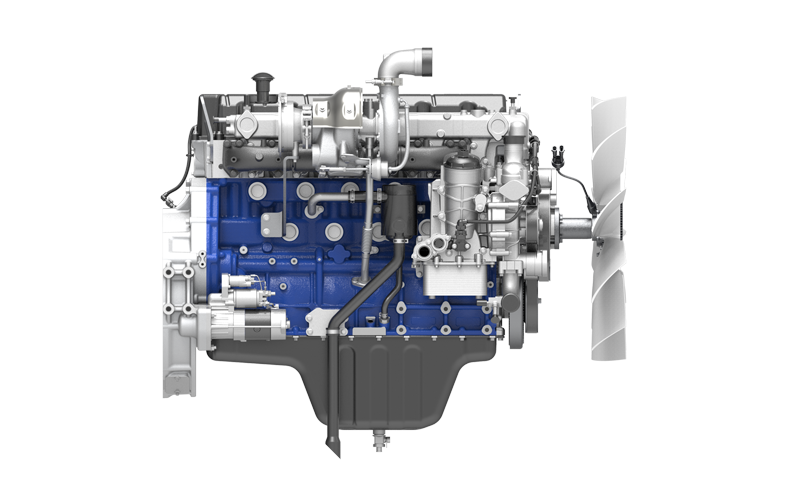

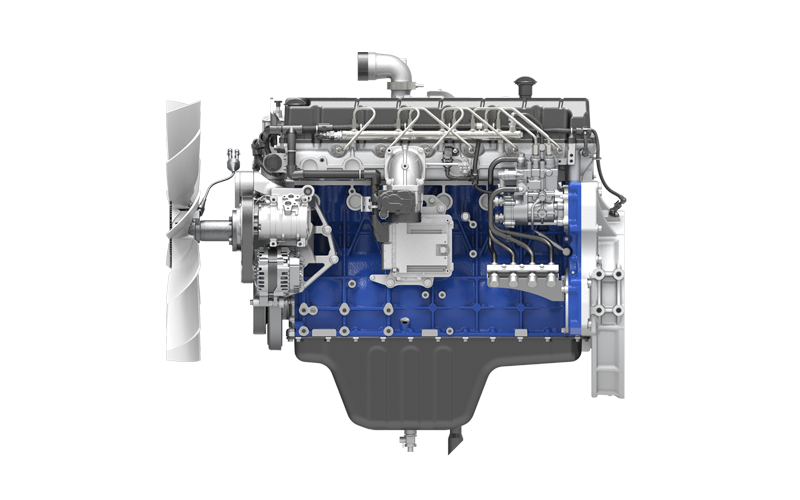

New product from the H-series high-end platform with a modular family design, enhanced power and competitiveness, and separate intake and exhaust structure for strong adaptability; Power output ranges from 140 to 228 kW, suitable for 23–33t excavators.
产品优势
Low fuel consumption: Separate intake and exhaust design enhances volumetric efficiency and optimizes combustion, leading to improved economy with a minimum specific fuel consumption of 183 g/kW·h.
Excellent NVH performance: Rear gear train and low gear ratio train further reduce vibration and noise, achieving levels 2–3 dB(A) lower than competing products.
Powerful performance: Torque increased to 1310 N·m.
Aesthetic upgrade: Family-style design, with smoother and more aesthetic oil and electrical routing.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP8HG218E303 |
160/2000 |
1160/1300 |
8.2 |
EU Stage ⅢA |
CR |
23–26t excavator |
4 |
|
WP8HG249E303 |
183/2000 |
1310/1300 |
8.2 |
EU Stage ⅢA |
CR |
26–28t excavator |
4 |
|
WP8HG310E303 |
228/2000 |
1310/1300-1600 |
8.2 |
EU Stage ⅢA |
CR |
30–33t excavator |
4 |
|
WP8HG190E670 |
140/2000 |
1040/1300-1600 |
8.2 |
EU Stage V |
DOC+DPF+SCR |
21–22t excavator |
4 |
|
WP8HG218E670 |
160/2000 |
1160/1300-1600 |
8.2 |
EU Stage V |
DOC+DPF+SCR |
23–26t excavator |
4 |
|
WP8HG258E670 |
190/2000 |
1310/1300-1500 |
8.2 |
EU Stage V |
DOC+DPF+SCR |
26–28t excavator |
4 |
|
WP8HG310E670 |
228/2000 |
1310/1300-1600 |
8.2 |
EU Stage V |
DOC+DPF+SCR |
30–33t excavator |
4 |
