WEICHAI

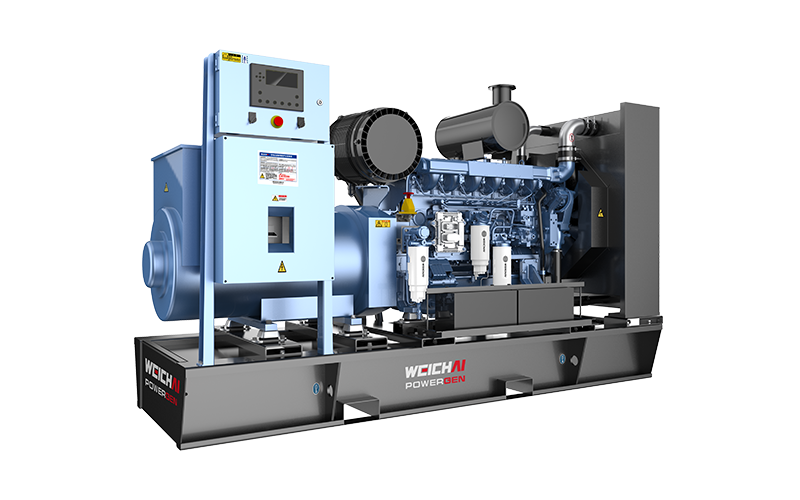

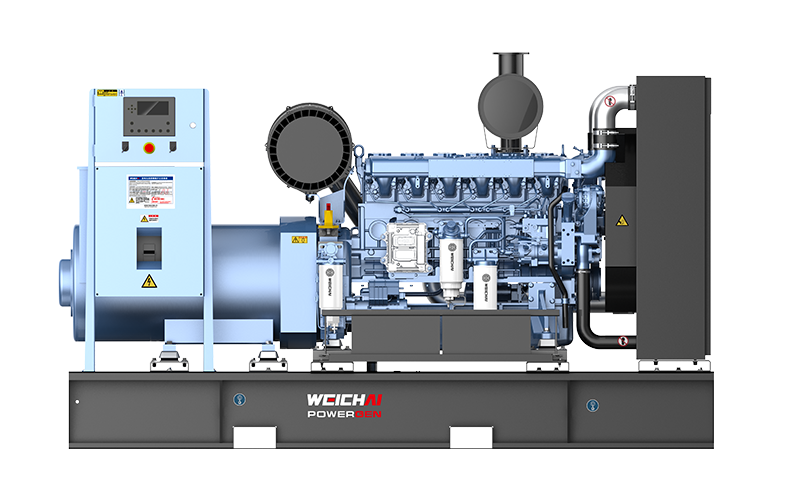

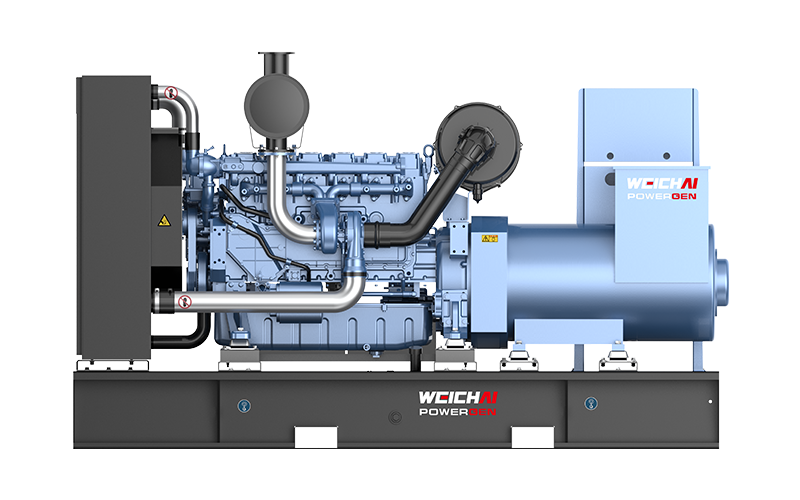

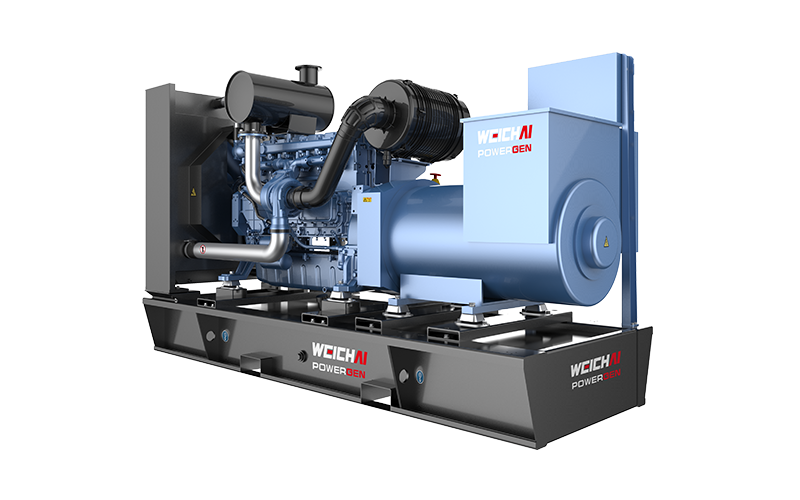

320 kVA-350 kVA Standard Land-based Generator Set Series

Suitable for equipment rental, telecommunications, real estate, and livestock farming applications

250-280

功率范围/持续功率

Soundproofed

结构形式

产品概述

Designed for medium-to-high power continuous power supply and complex load scenarios, suitable for prime or standby power requirements in data centers, factory production lines, infrastructure projects, and port logistics.

产品优势

Intelligent Control: Supports CAN bus communication and is compatible with mainstream ATS and remote cloud monitoring platforms; standard features include remote start/stop, parameter monitoring, and fault alarming

High Adaptability: Capable of operating in complex environments including high temperatures, extreme cold, high altitudes, high humidity, and dusty conditions, while maintaining performance with varying fuel qualities

High Reliability: The products have undergone over thirty durability and performance tests, ensuring long-lasting durability and superior reliability of the generator sets

High Economy: Matched with high-pressure ratio turbochargers to increase air intake and optimize combustion for significant fuel savings

产品规格

功率范围kWe
250-280
产品系列
燃料
Diesel
发动机型式
Inline
气缸数
6
缸径 × 行程mm
排量 L
9.73
机组尺寸(敞开式)mm
2999 × 1170 × 1920 (Soundproofed)
重量(开式)kg
3550 (Soundproofed)
结构形式
Soundproofed

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Genset Model

Rated speed (rpm)

Standby Power (kVA/kW)

Prime Power (kVA/kW)

Baudouin Engine Model

Cylinders

Bore × Stroke (mm)

Governing System

Emission standard

WPG350L8

1500

350/280

320/250

6M16G8D3/5

6

126×130

Electronic control

Stage IIIA
