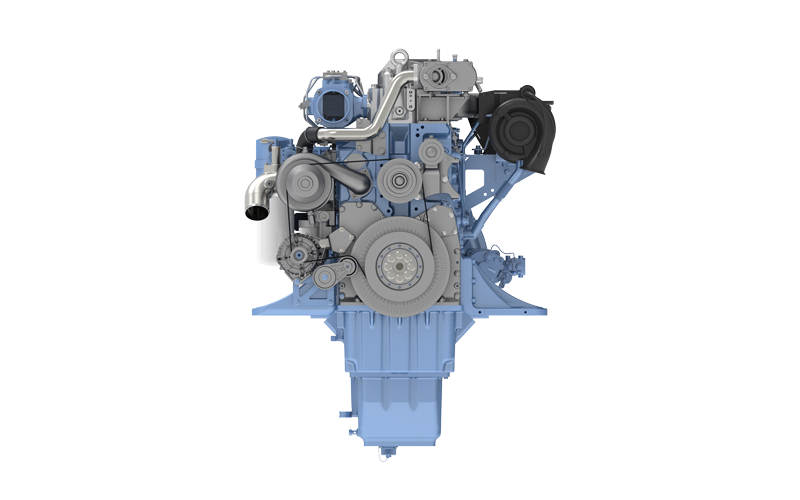

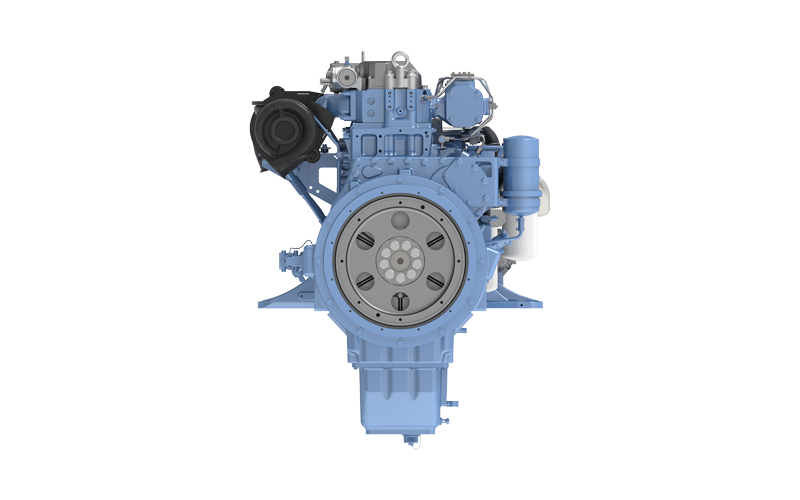

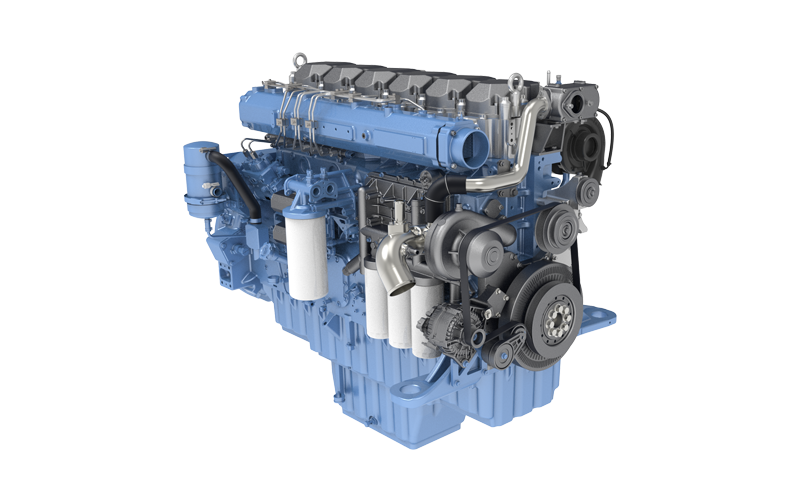

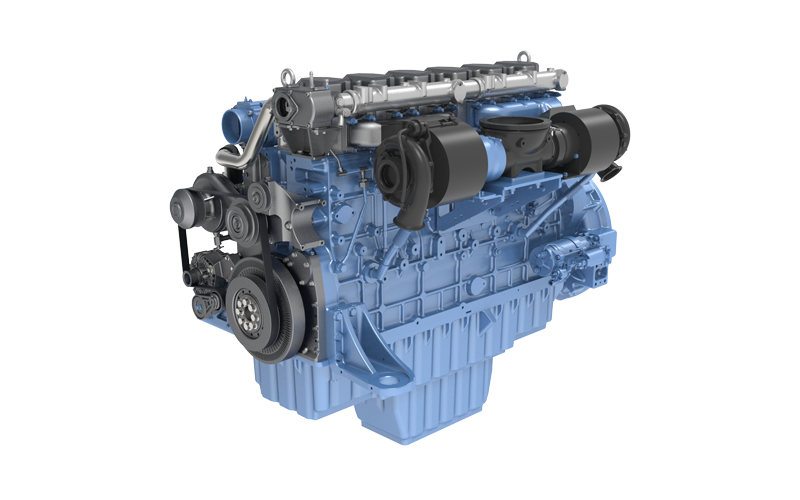

6M33 Engine for Excavator

Adapted for 100–125t excavators.

571-610/777-830

功率范围 kW/Ps

3900/1400

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Construction Machinery Engine/Engine for Excavator

概述优势规格型谱表

产品概述

6-cylinder, in-line, four-stroke, electronically controlled high-pressure common rail, turbocharged and intercooled, displacement of 19.6L, rated power of 610 kW, rated speed 1800 rpm, maximum torque/speed of 3900 N·m / 1400 rpm.

产品优势

Powerful performance: with a maximum power of 610 kW and a maximum torque of 3900 N·m.

Excellent fuel economy: with fuel consumption in typical operating ranges over 10% lower than mainstream competing products; superior NVH performance, with noise 1–2 dB(A) lower than competing products.

Capable of high-altitude operation at 5000m: with an allowable ambient temperature range of -50–50℃.

产品规格

功率范围 kW/Ps

571-610/777-830

最大扭矩转速 N·m / r/min

3900/1400

排放标准

China Non-road Stage III

燃料

Diesel

发动机型式

In-line

气缸数

气门数

Number of valves per cylinder

排量 L

19.6

进气方式

Turbocharged and intercooled

发动机尺寸（长X宽X高） mm

1732×1122×1541

G重量 kg

2300

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
6M33G777E305	571/1800	3600/1300~1500	19.6	China Non-road Stage III	Electronically controlled high-pressure common rail	100t mining excavator	Number of valves per cylinder
6M33G830E305	610/1800	3900/1400	19.6	China Non-road Stage III	Electronically controlled high-pressure common rail	125t mining excavator	Number of valves per cylinder

6M33 Engine for Excavator

571-610/777-830

3900/1400
