WEICHAI

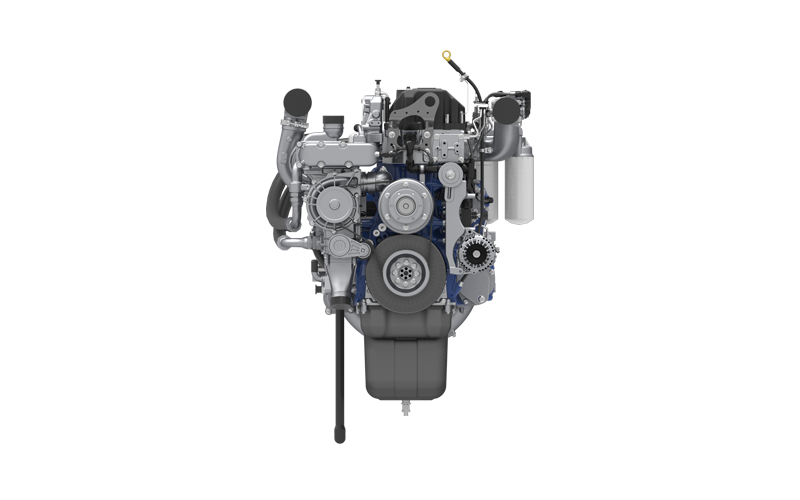

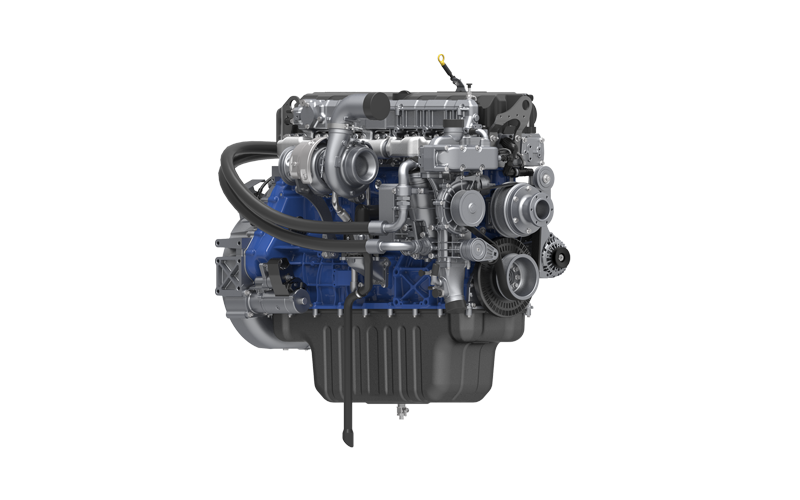

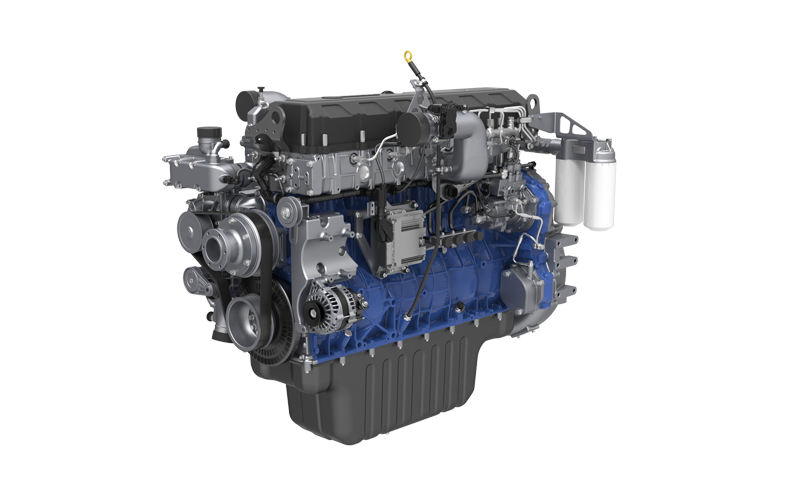

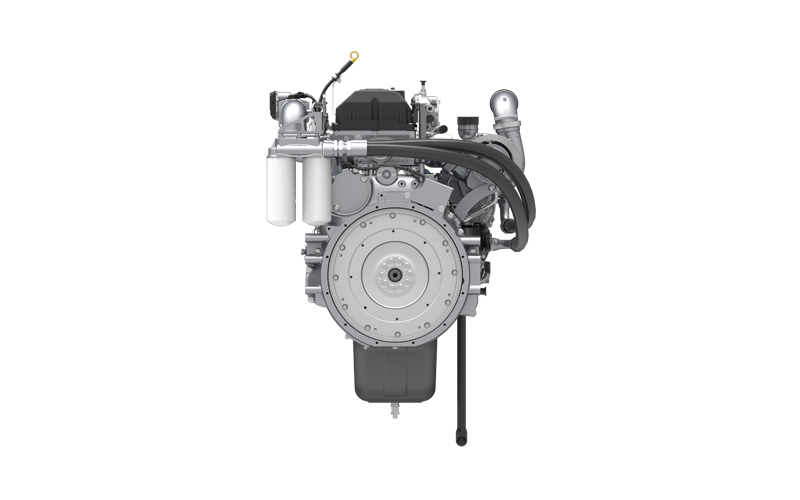

WP14T Engine for Excavator

Adapted for 50–60t excavators

562/765

功率范围 kW/Ps

2900/1200-1500

最大扭矩/转速 N·m / r/min

产品概述

Engine displacement of 13.5L, enhanced power and competitiveness, and separate intake and exhaust structure for strong adaptability; Power of 562 kW, compliant with Stage ⅢA emission standards, no aftertreatment system required, adapted for 50–60t excavators.

产品优势

Economy: High-efficiency combustion technology and high-performance turbocharger, achieving 53.09% fuel thermal efficiency; Vehicle fuel consumption is over 15% lower than that of competing products.

Adaptability: Suitable for operation between -30°C and 50°C at altitudes up to 5000 meters, with a 500-hour oil change interval, ensuring low operating costs.

Dynamics: 2000 bar fuel injection system, high combustion efficiency, high torque at low speeds, and robust power output; Maximum torque of 2900 N·m.

Reliability: Features a reinforced engine block design, low speed ratio accessory design, and fully sealed tensioners for high reliability.

Comfort: Utilizes pre-injection technology to effectively reduce combustion noise; Rear gear housing structure effectively reduces mechanical noise; Noise level is 2 dB(A) lower than that of advanced competing products.

产品规格

功率范围 kW/Ps
562/765
最大扭矩转速 N·m / r/min
2900/1200-1500
排放标准
Stage ⅢA
燃料
Diesel
发动机型式
ln-line
气缸数
6
气门数
4
排量 L
13.5
进气方式
Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
1498×901×1185
G重量 kg
1150

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP14TG765E304

562/1900

2900/1200-1500

13.5

Stage ⅢA

CR

50–60t excavator

4
