WEICHAI

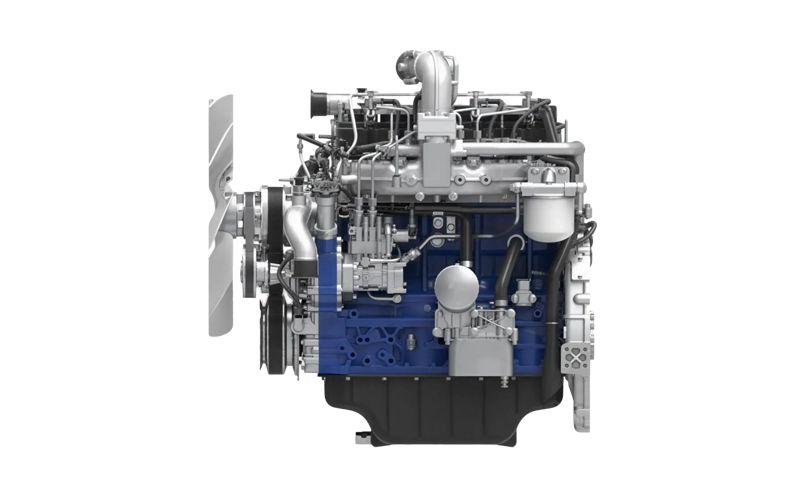

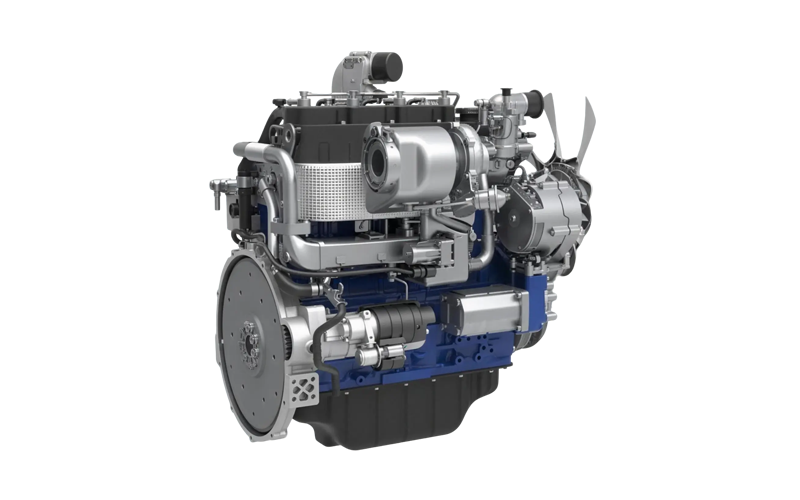

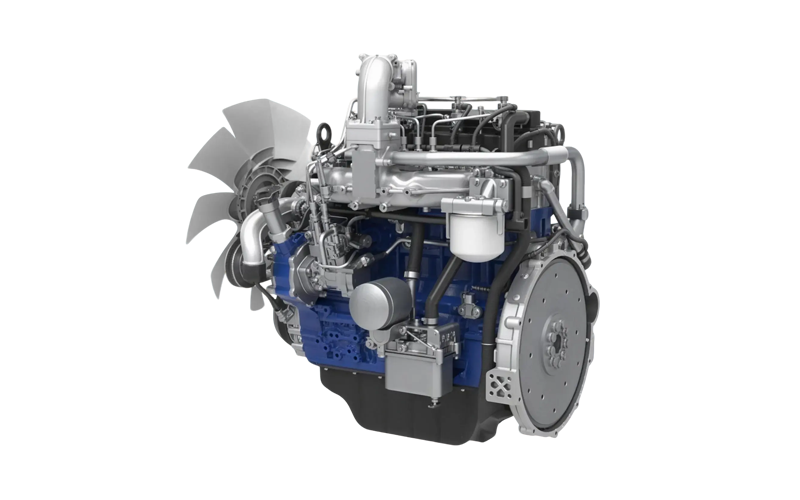

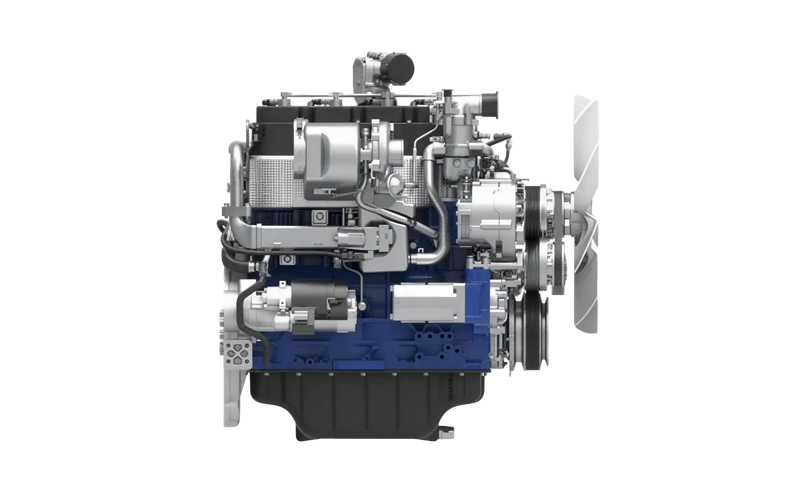

WP3.6N Engine for Tractor

Adapted for 80–120 PS wheeled tractors

60-100/82-136

功率范围 kW/Ps

550/1500-1700

最大扭矩/转速 N·m / r/min

产品概述

Newly developed product with a four-valve structure, enhancing power and fuel economy with high adaptability; Power range of 60–100 kW, compliant with EU Stage IIIA/Stage V emission standards, suitable for 80–120 PS tractors.

产品优势

Power Performance: Four-valve design optimizes combustion, delivering rapid power response, high low-end torque, and superior anti-bogging capability.

Fuel Economy: Separate intake and exhaust manifold design enhances volumetric efficiency and optimizes combustion, leading to improved fuel economy.

Adaptability: Fully sealed design suitable for paddy and dry field operations, featuring a standard proprietary dust filtration system with ≥93% efficiency to handle harsh working environments.

Superior NVH performance: Utilizing pilot injection technology and a high-precision meshing gear train, the engine delivers low vibration and noise, outperforming competitors by 8%.

Emission Compliance: Developed based on China VI on-road emission standards, with specialized strategies for tractors to extend regeneration intervals; Upgradeable to China Non-Road Stage IV and EU Stage V, ensuring a long service life.

Aesthetic upgrade: Family-style design, with smoother and more aesthetic oil and electrical routing.

产品规格

功率范围 kW/Ps
60-100/82-136
最大扭矩转速 N·m / r/min
550/1500-1700
排放标准
EU Stage IIIA/ StageV
燃料
Diesel
发动机型式
In-line
气缸数
4
气门数
4
排量 L
3.58
进气方式
Turbocharged / Turbocharged and intercooled
发动机尺寸(长X宽X高) mm
916×575×931
G重量 kg
400±20

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP3.6NG82E301

60/2200

300/1500-1700

3.58

EU Stage IIIA

CR

Tractor

4

WP3.6NG96E301

70/2200

410/1600

3.58

EU Stage IIIA

CR

Tractor

4

WP3.6NG102E301

75/2200

435/1600

3.58

EU Stage IIIA

CR

Tractor

4

WP3.6NG112E301

82.5/2200

465/1600

3.58

EU Stage IIIA

CR

Tractor

4

WP3.6NG122E301

90/2200

500/1500-1700

3.58

EU Stage IIIA

CR

Tractor

4

WP3.6NG136E301

100/2200

550/1500-1700

3.58

EU Stage IIIA

CR

Tractor

4

WP3.6NG88E680

65/2200

355/1600

3.58

Stage V

CR+EGR+DOC+DPF+SCR

Tractor

4

WP3.6NG94E680

69/2200

375/1600

3.58

Stage V

CR+EGR+DOC+DPF+SCR

Tractor

4

WP3.6NG95E680

70/2200

410/1600

3.58

Stage V

CR+EGR+DOC+DPF+SCR

Tractor

4

WP3.6NG102E680

75/2200

405/1600

3.58

Stage V

CR+EGR+DOC+DPF+SCR

Tractor

4

WP3.6NG105E680

77/2200

455/1600

3.58

Stage V

CR+EGR+DOC+DPF+SCR

Tractor

4

WP3.6NG112E681

82.5/2200

465/1600

3.58

Stage V

CR+EGR+DOC+DPF+SCR

Tractor

4

WP3.6NG121E680

89/2200

465/1600

3.58

Stage V

CR+EGR+DOC+DPF+SCR

Tractor

4
