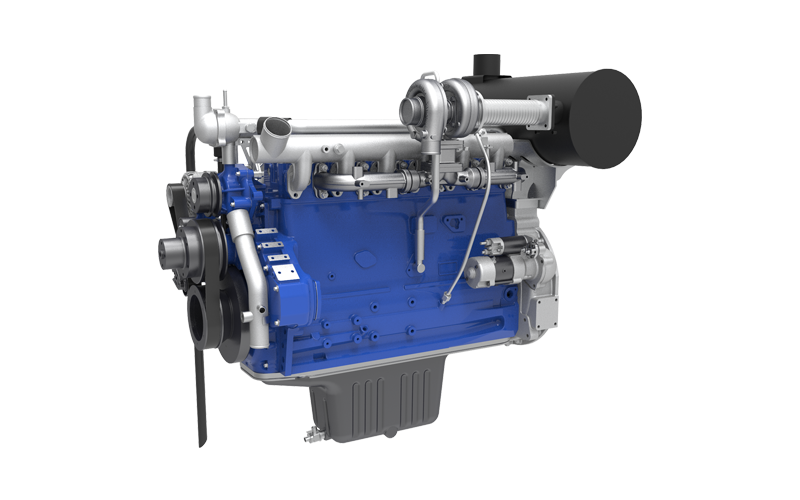

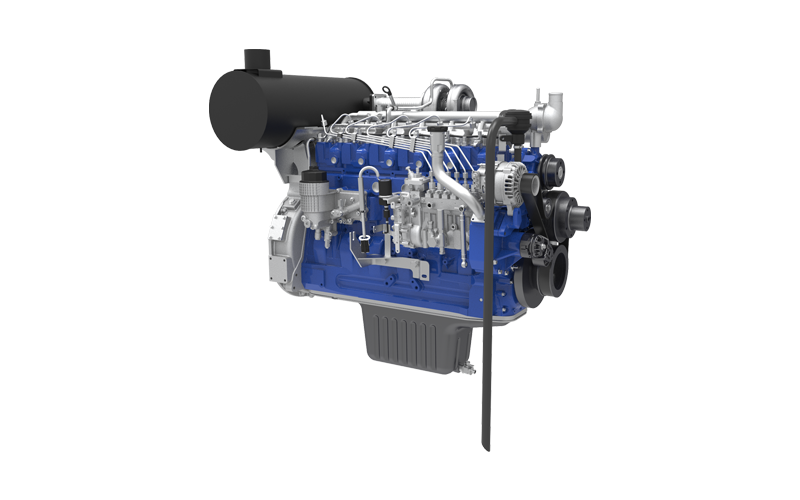

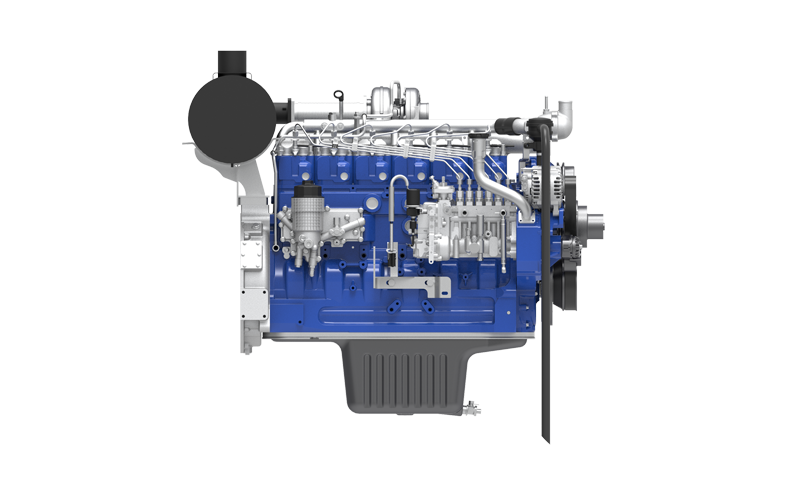

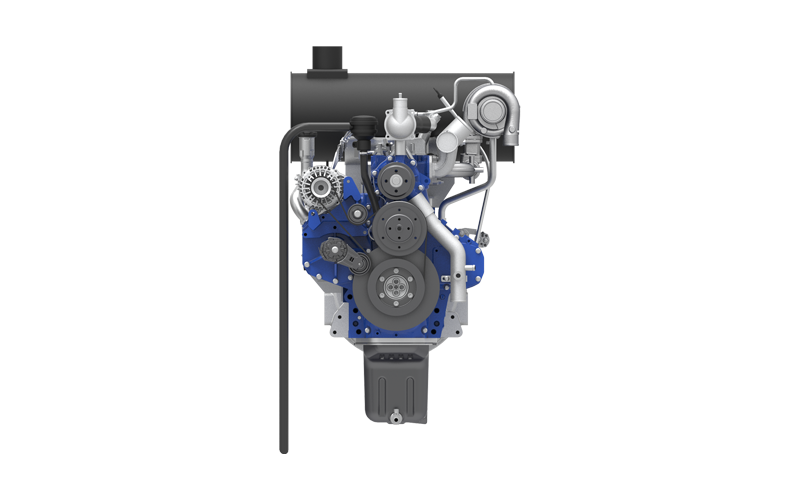

产品概述
Originating from Europe and refined over more than 20 years with over 600,000 units in global operation, it features high reliability and an electronically controlled high-pressure common rail technical route to meet the performance needs of overseas customers.
产品优势
Reliability: Widely adapted across the industry with fully validated engine body, ensuring a mature and reliable product.
Adaptability: Mid-mounted oil pan for excellent adaptability, with an operational tilt angle of 35°.
Comfort: Low gear ratio train for low noise.
Mature service: Over 600,000 units in global operation, with mature service support in overseas markets.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP6G160E331 |
118/2000 |
720/1300-1500 |
6.75 |
EU Stage ⅢA |
CR |
20–22t excavator |
2 |
|
WP6G175E301 |
129/2000 |
760/1300-1500 |
6.75 |
EU Stage ⅢA, MAR-1 |
CR |
20–22t excavator |
2 |
