Mature product with a large market population, offering superior fuel economy and high reliability.
Suitable for general market, industrial warehousing, construction and rental, public utilities, highway, water conservancy, and power grid applications
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

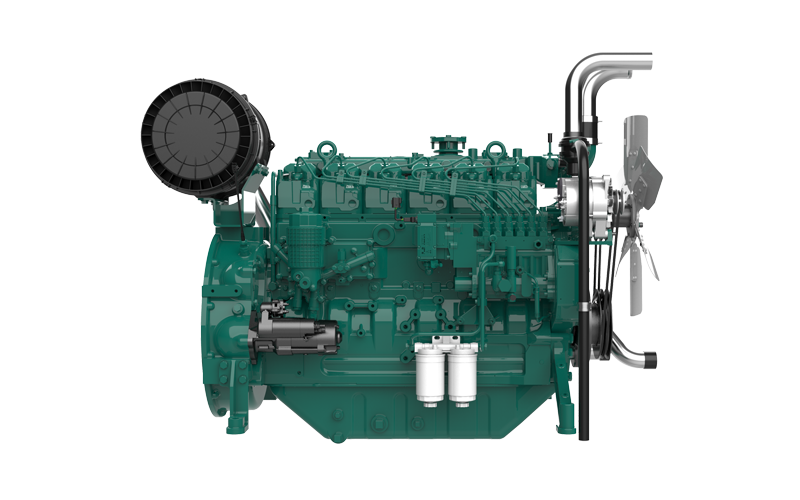

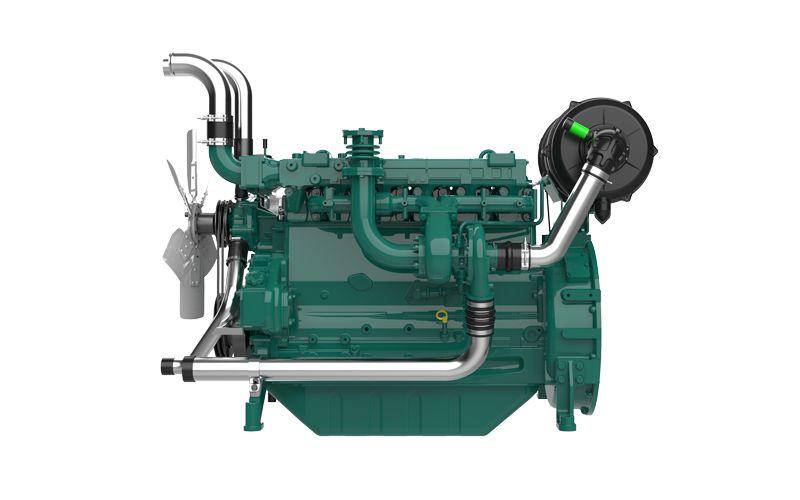

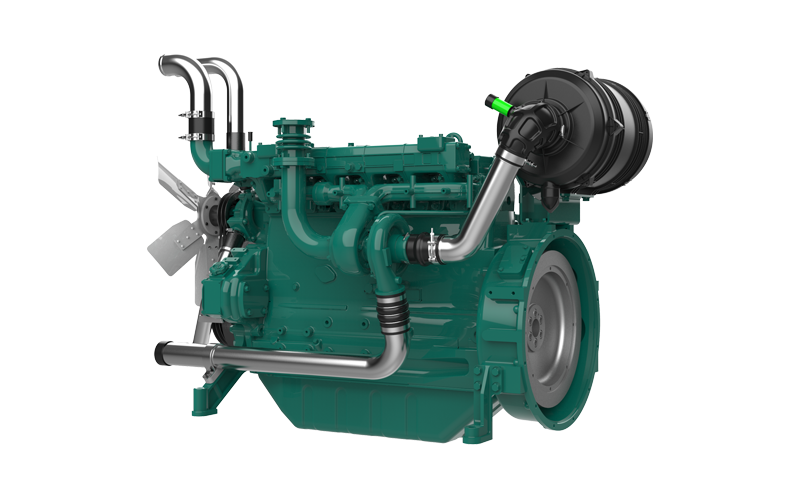

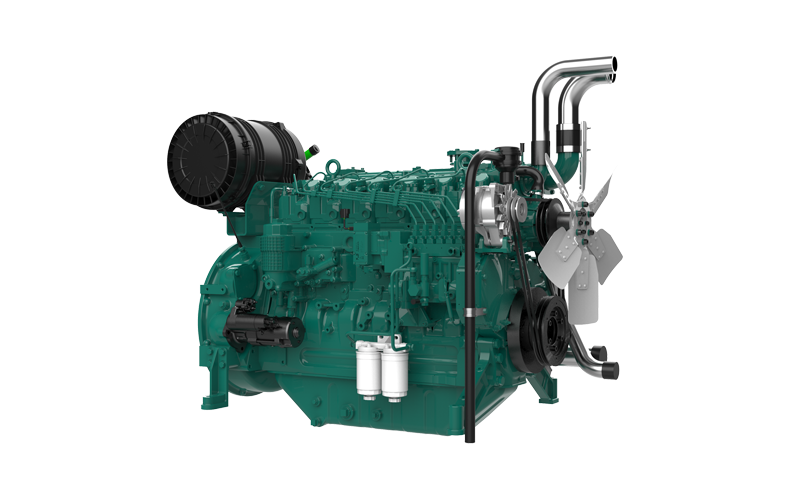

The 6M11 series is a new generation of high-end engines independently developed by Weichai, featuring a compact structure, high reliability, and excellent load response; Power output ranges from 128 to 200 kWm, suitable for 100–180 kWe generator sets.
产品优势
Fuel System: Electronic governing system provides optimized fuel atomization, superior fuel economy, and simple, reliable operation
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Lubrication System: Integrated oil cooler and oil filter module for easier maintenance
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
6M11G150/5 |
6.75 |
2 |
128/1500 |
140/1500 |
100 |
120 |
Electronic Speed Regulation |
|
6M11G165/5 |
6.75 |
2 |
138/1500 |
152/1500 |
120 |
132 |
Electronic Speed Regulation |
|
6M11G110/6 |
6.75 |
2 |
120/1800 |
132/1800 |
100 |
110 |
Electronic Speed Regulation |
|
6M11G135/6 |
6.75 |
2 |
144/1800 |
158/1800 |
120 |
132 |
Electronic Speed Regulation |
|
6M11G160/6 |
6.75 |
2 |
163/1800 |
180/1800 |
145 |
150 |
Electronic Speed Regulation |
|
6M11G176/6 |
6.75 |
2 |
182/1800 |
200/1800 |
160 |
180 |
Electronic Speed Regulation |
