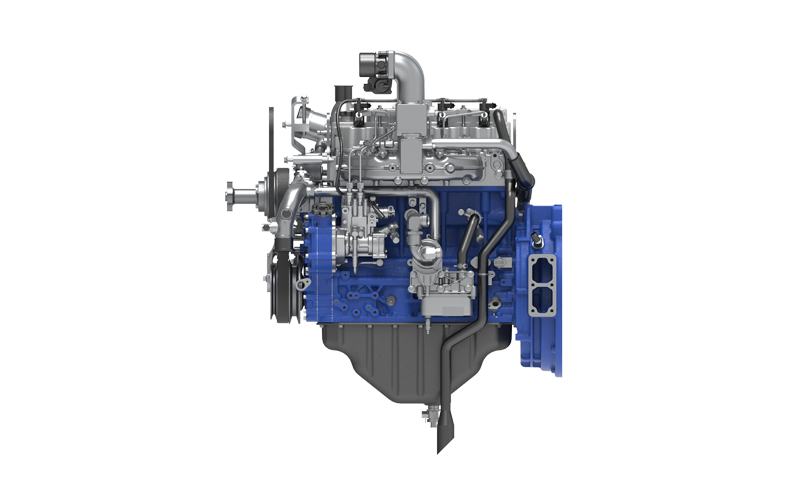

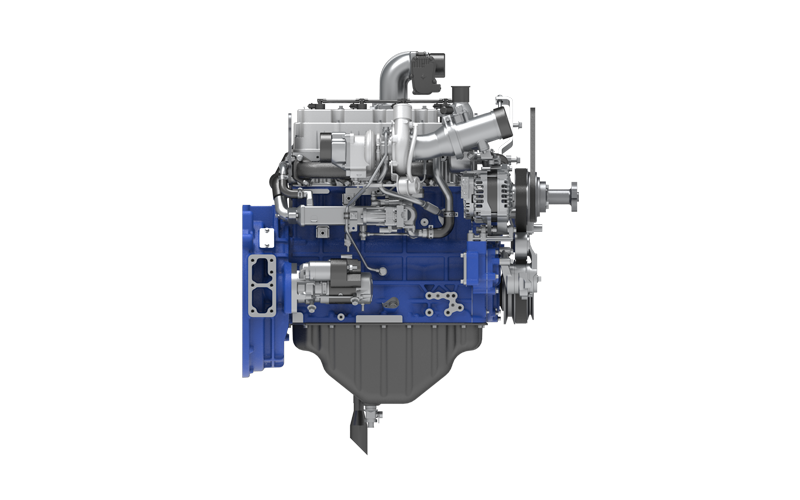

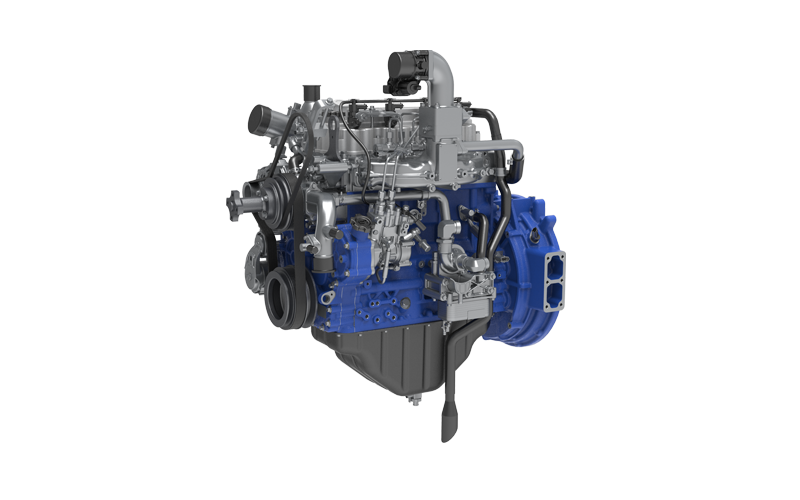

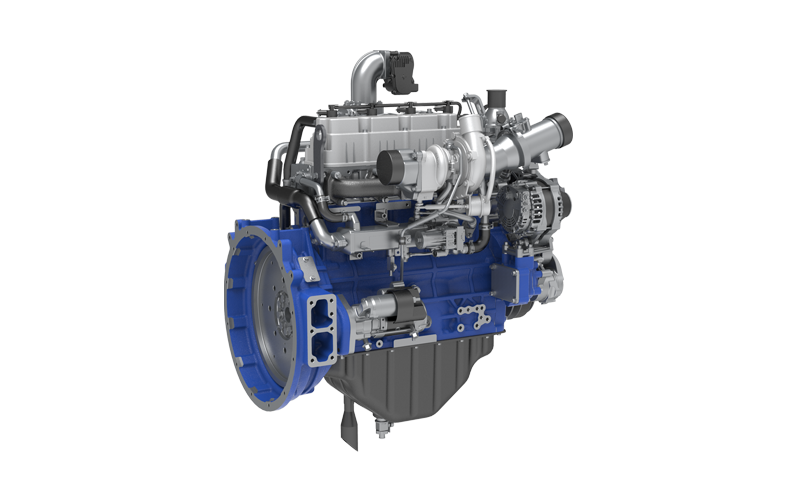

WP3.6N Engine for Excavator

Adapted for 9–15t excavators

74-103/100-140

功率范围 kW/Ps

550/1400-1600

最大扭矩/转速 N·m / r/min

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain System/Engine/Construction Machinery Engine/Engine for Excavator

概述优势规格型谱表

产品概述

WP3.6N modular design with a single-cylinder, four-valve structure, enhancing power and economy with strong adaptability; Power output ranges from 82.5 to 105 kW, suitable for 9–15t excavators.

产品优势

Power and economy: Four-valve design provides strong power, with base fuel consumption improved by 4–9 g/kW·h and overall machine fuel savings of 15%.

Strong adaptability: Front and rear power take-offs (PTOs) meet requirements for 5000 m high-altitude operation.

Clean appearance: Platform-based design with modular component layout, high integration, neat and aesthetically pleasing.

产品规格

功率范围 kW/Ps

74-103/100-140

最大扭矩转速 N·m / r/min

550/1400-1600

排放标准

EU Stage ⅢA, EU Stage V

燃料

Diesel

发动机型式

In-line

气缸数

气门数

排量 L

3.58

进气方式

Turbocharged, turbocharged and intercooled

发动机尺寸（长X宽X高） mm

G重量 kg

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Rated power/speed (kW/rpm)	Peak torque/speed (N·m/rpm)	Displacement (L)	Emission standard	Technical route	Target applications	Number of valves
WP3.6NG112E301	82.5/2200	465/1600	3.58	EU Stage ⅢA	CR	10–13t excavator	4
WP3.6NG136E301	100/2200	550/1600	3.58	EU Stage ⅢA	CR	13–15t excavator	4
WP3.6NG100E681	74/2000	450/1400-1600	3.58	EU Stage V	EGR+DOC+DPF+SCR	9–10t excavator	4
WP3.6NG125E680	92/2000	500/1400-1600	3.58	EU Stage V	EGR+DOC+DPF+SCR	13t excavator	4
WP3.6NG140E680	103/2000	550/1400-1600	3.58	EU Stage V	EGR+DOC+DPF+SCR	13–15t excavator	4
